(SW4) StorageWall – Double doors with top box over
Our Style FOUR StorageWall units are designed to maximise the full floor to ceiling capacity and introduce a compartmentalisation module dedicated to the zoning of storage requirements.
All Style FOUR modules are available in many sizes, finishes and internal options.
This StorageWall unit can be used against a wall, or to divide office space as a free standing / room dividing module.
View other StorageWall options from our range.
Specifications
(SW4) – Double Doors with Top box over

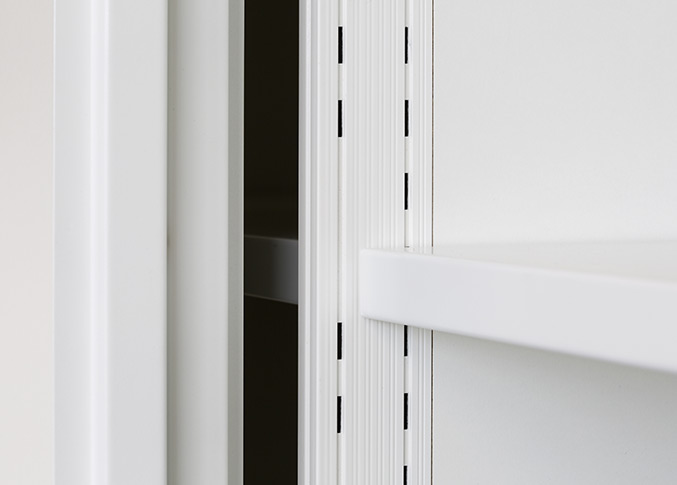

- Aluminium constructed sidewalls to achieve a high level of strength to weight construction. The Ali is punched with a 25mm grid to give added flexibility with the internal fitments compared to the conventional 32mm pegboard. The Aluminium extrusion is made solely for James Tobias Ltd.
- All carcass/exterior timber panels are made from 18mm MFC.
- 22mm MDF support rails are added to the base/top panels for added strength.
- The weight loading per module can be up to 240 kg evenly distributed between the internals.
- +/- 15mm tolerance per module, ensuring the units are levelled to suit the site conditions.
- 3 x Standard module depths – 412 (A4), 472 (Foolscap), 600 (coats).
- 6 x Standard Module widths – 400, 500, 600 (single door) 800, 1000, 1200 (double door).
- Floor to ceiling construction.
- Up to 45 dB Rw Acoustic performance (BS 5821).
View Internals
Scroll right to view range →
1
3 x Roll out filing frames. 1 x Combination shelf with pigeon holes above. 3 x Adjustable plain steel shelves.
2
3 x Drawer fronted deep drawers. Clad alcove with glass shelves and downlighters.
3
8 x Combination shelves for lateral filing pockets. 1 x Roll out reference shelf.
4
6 x Adjustable plain steel shelves.
5
2 x Adjustable plain steel shelves. 1 x Combination shelf. 2 x Front to back coat rails.
6
Chiller (example only) and low level double doors with double clad alcove for media screen above.
7
Chiller (example only) and low level double doors with double clad alcove for media screen above.
8
Double door module with top box.
9

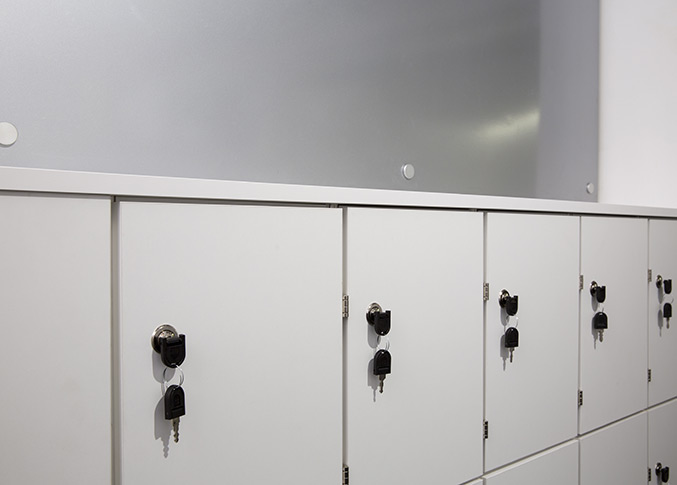

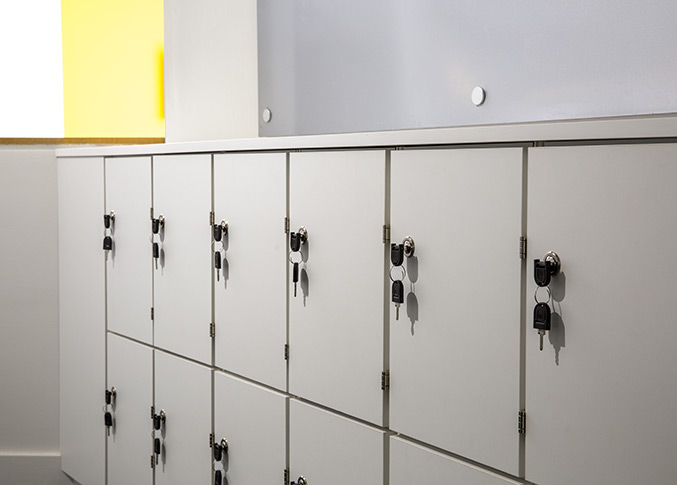

Personal lockers, individually locking compartments for personal storage.
10
600 Deep cloaks unit. 3 x Adjustable plain steel shelves. 1 x Lateral coat rail.
11
1 x Roll out filing frame (shown with dividers). 2 x Shallow drawers. 1 x Combination shelf with mini pigeon hole above. 1 x Lateral cradle. 1 x Slotted shelf with dividers.
12
3 x Deep drawers. 1 x Roll out reference shelf. 1 x Slotted combination shelf. 1 x Slotted shelf. 2 x Adjustable plain steel shelves.
Choose from our multipurpose internal range shown above.
All internals are designed and manufactured in house in our Somerset factory and delivered using our fleet of modern vehicles. they are then carefully installed by our own directly employed and experienced fitting crew.
View Finishes
Explore our available finishes:
Element colour range
A
Zoom in
+
B
Zoom in
+
C
Zoom in
+
D
Zoom in
+
A - Element Platinum White
B - Element Crema
C - Element Light Grey
D - Element Black
Elite colour range
A
Zoom in
+
B
Zoom in
+
C
Zoom in
+
D
Zoom in
+
E
Zoom in
+
F
Zoom in
+
G
Zoom in
+
H
Zoom in
+
A - Elite White Gloss
B - Elite Crema Gloss
C - Elite Stone Gloss
D - Elite Black Gloss
E - Elite Tobacco Halifax Oak
F - Elite White Halifax Oak
G - Elite Natural Halifax Oak
H - Elite Boston Concrete
Pastel colour range
A
Zoom in
+
B
Zoom in
+
C
Zoom in
+
D
Zoom in
+
E
Zoom in
+
F
Zoom in
+
A - Pastel Stone
B - Pastel Mussel
C - Pastel Denim
D - Pastel Fjord
E - Pastel Onyx Grey
F - Pastel Graphite
Woodgrain finishes - Woodland
A
Zoom in
+
B
Zoom in
+
C
Zoom in
+
D
Zoom in
+
E
Zoom in
+
F
Zoom in
+
G
Zoom in
+
H
Zoom in
+
I
Zoom in
+
J
Zoom in
+
K
Zoom in
+
L
Zoom in
+
A - Cascina Pine
B - White Avola
C - Light Lakeland Acacia
D - Natural Canadian Maple
E - Natural Nebraska
F - Truffle Brown Davos Oak
G - Shorewood
H - Green Grey Avola
I - Grey Nebraska
J - Lancaster Oak
K - Tobacco Aida Walnut
L - Graphitewood
OTHER FINISHES
A wide range of colours is available on request.
