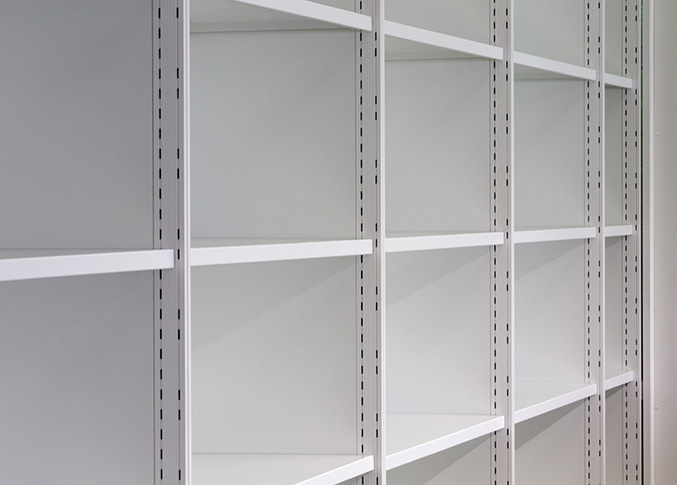

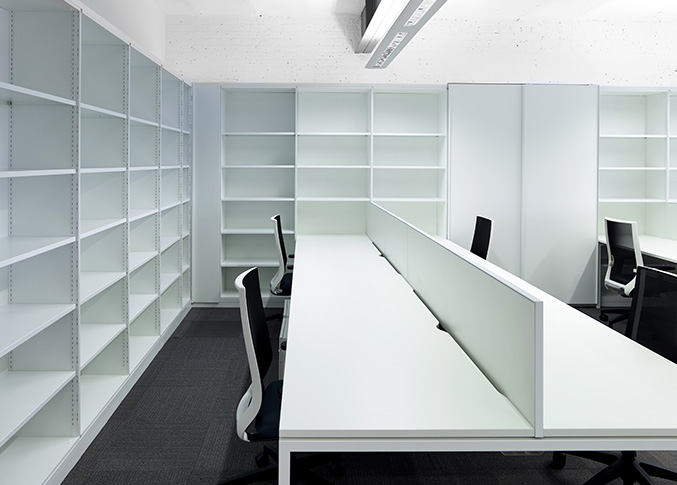

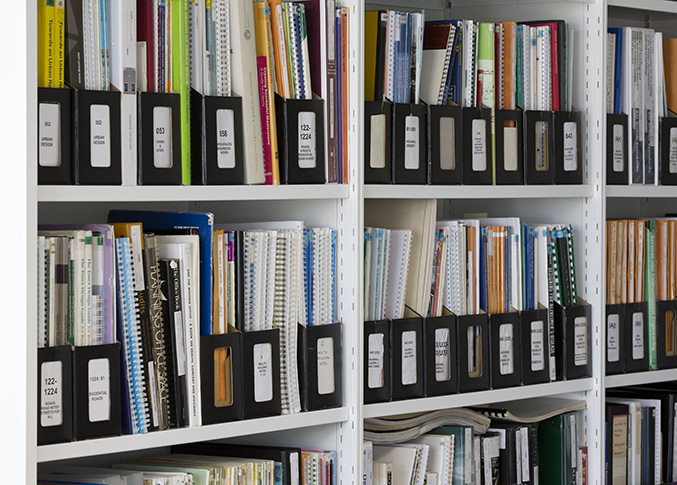

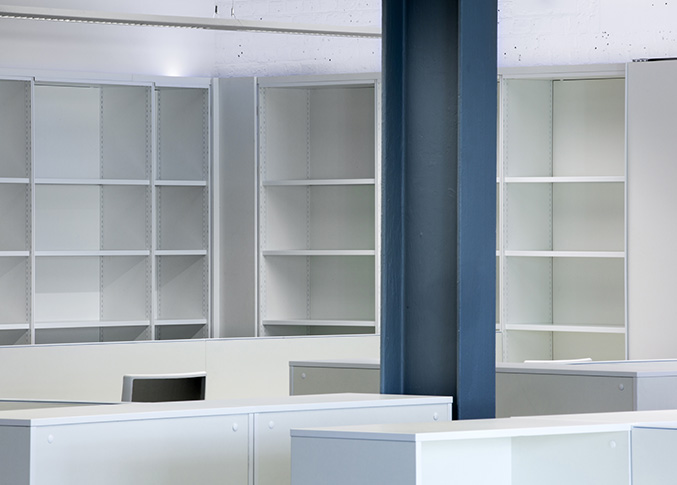

(SW11) StorageWall – Open fronted
Our Style ELEVEN StorageWall units are designed to complement the rest of the StorageWall range by units with no doors.
All Style ELEVEN modules are available in many sizes, finishes and internal options.
This StorageWall unit can be used against a wall or to divide office space as a free standing / room dividing module.
View other StorageWall options from our range.
Specifications
(SW11) – OpenFronted module
- Aluminium constructed sidewalls to achieve a high level of strength to weight construction. The Ali is punched with a 25mm grid to give added flexibility with the internal fitments compared to the conventional 32mm pegboard. The Aluminium extrusion is made solely for James Tobias Ltd.
- All carcass/ exterior timber panels are made from 18mm MFC.
- 22mm MDF support rails are added to the base/top panels for added strength.
- The weight loading per module can be up to 240 kg evenly distributed between the internals.
- +/- 15mm tolerance per module, ensuring the units are levelled to suit the site conditions.
- 3 x Standard module depths – 412 (A4), 472 (Foolscap), 600 (coats).
- 6 x Standard Module widths – 400, 500, 600 (single door) 800, 1000, 1200 (double door).
- Floor to ceiling construction. A maximum ceiling height of 2900mm can be achieved with a one piece board. Higher heights can be achieved with added top fascias or additional top box storage.
- Up to 45 dB Rw Acoustic performance (BS 5821).
View Internals
Scroll right to view range →
1
3 x Roll out filing frames. 1 x Combination shelf with pigeon holes above. 3 x Adjustable plain steel shelves.
2
3 x Drawer fronted deep drawers. Clad alcove with glass shelves and downlighters.
3
8 x Combination shelves for lateral filing pockets. 1 x Roll out reference shelf.
4
6 x Adjustable plain steel shelves.
5
2 x Adjustable plain steel shelves. 1 x Combination shelf. 2 x Front to back coat rails.
6
Chiller (example only) and low level double doors with double clad alcove for media screen above.
7
Chiller (example only) and low level double doors with double clad alcove for media screen above.
8
Double door module with top box.
9
Personal lockers, individually locking compartments for personal storage.
10
600 Deep cloaks unit. 3 x Adjustable plain steel shelves. 1 x Lateral coat rail.
11
1 x Roll out filing frame (shown with dividers). 2 x Shallow drawers. 1 x Combination shelf with mini pigeon hole above. 1 x Lateral cradle. 1 x Slotted shelf with dividers.
12
3 x Deep drawers. 1 x Roll out reference shelf. 1 x Slotted combination shelf. 1 x Slotted shelf. 2 x Adjustable plain steel shelves.
Choose from our multipurpose internal range shown above.
All internals are designed and manufactured in house in our Somerset factory and delivered using our fleet of modern vehicles. They are then carefully installed by our own directly employed and experienced fitting crew.
Helping choose your internals
James Tobias StorageWall is a well-engineered and robust storage system designed to accommodate normal office filing requirements. The method of storage provided by the various internal fitments is self-evident but the following precautions should be heeded.
Shelves – All shelves are manufactured from steel. Their design provides lateral restraint to the unit side walls and eliminates the sagging associated with timber shelves.
Only fit the appropriate number of files to the shelves or filing frames – forcing in extra files exerts lateral loads on the side walls. Overloading the shelves and filing frames in this manner is dangerous. The use of shelf dividers is recommended to reduce the possibility of lateral loading on the sidewalls.
To avoid damage to the doors, hinges and lock mechanism, ensure that badly filed or bulky items do not interfere with the doors or locking mechanism when closing.
View Finishes
Explore our available finishes:
Element colour range
A
Zoom in
+
B
Zoom in
+
C
Zoom in
+
D
Zoom in
+
A - Element Platinum White
B - Element Crema
C - Element Light Grey
D - Element Black
Elite colour range
A
Zoom in
+
B
Zoom in
+
C
Zoom in
+
D
Zoom in
+
E
Zoom in
+
F
Zoom in
+
G
Zoom in
+
H
Zoom in
+
A - Elite White Gloss
B - Elite Crema Gloss
C - Elite Stone Gloss
D - Elite Black Gloss
E - Elite Tobacco Halifax Oak
F - Elite White Halifax Oak
G - Elite Natural Halifax Oak
H - Elite Boston Concrete
Pastel colour range
A
Zoom in
+
B
Zoom in
+
C
Zoom in
+
D
Zoom in
+
E
Zoom in
+
F
Zoom in
+
A - Pastel Stone
B - Pastel Mussel
C - Pastel Denim
D - Pastel Fjord
E - Pastel Onyx Grey
F - Pastel Graphite
Woodgrain finishes - Woodland
A
Zoom in
+
B
Zoom in
+
C
Zoom in
+
D
Zoom in
+
E
Zoom in
+
F
Zoom in
+
G
Zoom in
+
H
Zoom in
+
I
Zoom in
+
J
Zoom in
+
K
Zoom in
+
L
Zoom in
+
A - Cascina Pine
B - White Avola
C - Light Lakeland Acacia
D - Natural Canadian Maple
E - Natural Nebraska
F - Truffle Brown Davos Oak
G - Shorewood
H - Green Grey Avola
I - Grey Nebraska
J - Lancaster Oak
K - Tobacco Aida Walnut
L - Graphitewood
OTHER FINISHES
A wide range of colours is available on request.
