Aria
In today’s modern, flexible and clean working environments, it’s important to provide people with adequate storage and their own secure space, to help prevent working environments becoming anything other than clutter free.
Aria is an aluminium structured full height locker system that can fully integrate into existing runs of James Tobias StorageWall providing that flexible clean environment.
View other Lockers from our range.
Specifications
- Aluminium constructed sidewalls to achieve a high level of strength to weight construction.
- The Ali is punched with a 25mm grid to give added flexibility with the internal fitments compared to the conventional 32mm pegboard. The Aluminium extrusion is made solely for James Tobias Ltd.
- All carcass/exterior timber panels are made from 18mm MFC.
- 22mm MDF support rails are added to the base/ top panels for added strength.
- The weight loading per module can be up to 240 kg evenly distributed between the internals.
- +/- 15mm tolerance per module, ensuring the units are levelled to suit the site conditions.
- 3 x Standard module depths – 412 (A4), 472 (Foolscap), 600 (coats).
- 6 x Standard Module widths – 400, 500, 600 (single door) 800, 1000, 1200 (double door).
- Floor to ceiling construction.
- Up to 45 db Acoustic performance (BS 5821).
Locks and Handles
LOCK KNOB
Our traditional lock knob and key is at the heart of James Tobias StorageWall products. A timeless classic that still appeals to the eye. Robust, functional and reliable, the lock will operate for many years to come. The core barrels can be suited or individually numbered allowing multiple locks to be used on items such as lockers.
FLUSH LOCK
A variation of the lock knob, our flush locks use the same quality barrel as our traditional lock knob which allows the same options on key numbers. These are traditionally used when you require a separate handle and don’t want a lock to protrude more than it needs too.
AIR/+ – RFID LOCK
A wireless, keyless, electronic lock. This design uses common building security systems such as an RFID access card to release the blocked locking system.

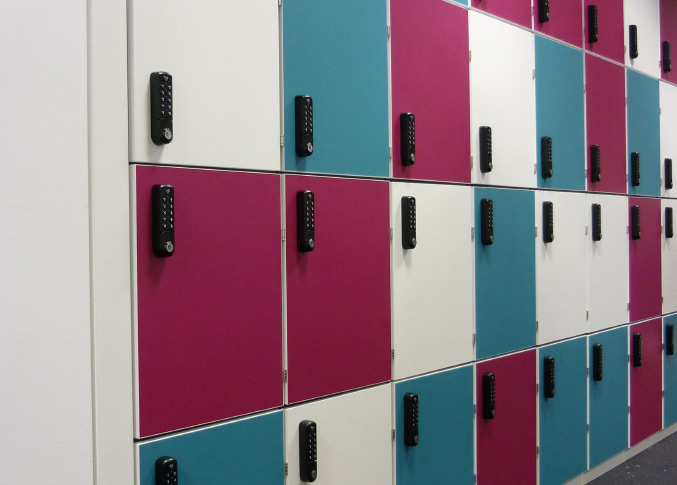

MINIPAD – KEYPAD LOCK
The miniPAD offers the simplicity of a keyless locking system on a small scale. It combines simple operation, modest size, advanced technology and secure functionality, all within an elegant design.
MECHANICAL COMBINATION LOCK
A great solution for when you require a hassle free combination lock but funds may not stretch to the electronic options. This lock is available in single and multi-user versions.
EVO/+ – COMBINATION LOCK
A wireless, keyless, electronic lock. Locking system for furniture and lockers that work entirely without keys, power cables or transponders. Created to enhance furniture design. To activate, simply enter the numbers and symbols for the individual code by rotating and pressing the knob. Available in single and multi-user versions.
Finishes
VINYL GRAPHICS
We are able to apply graphics to StorageWall that will help to maximise your opportunities for corporate branding whilst adding a decorative element to the office environment. The graphics have a protective laminate ensuring their long term durability. We can help you with your design or you can supply us with the finished article and we will arrange for it to be produced and applied to your StorageWall or partition elements.
Element colour range
A
Zoom in
+
B
Zoom in
+
C
Zoom in
+
D
Zoom in
+
A - Element Platinum White
B - Element Crema
C - Element Light Grey
D - Element Black
Elite colour range
A
Zoom in
+
B
Zoom in
+
C
Zoom in
+
D
Zoom in
+
E
Zoom in
+
F
Zoom in
+
G
Zoom in
+
H
Zoom in
+
A - Elite White Gloss
B - Elite Crema Gloss
C - Elite Stone Gloss
D - Elite Black Gloss
E - Elite Tobacco Halifax Oak
F - Elite White Halifax Oak
G - Elite Natural Halifax Oak
H - Elite Boston Concrete
Pastel colour range
A
Zoom in
+
B
Zoom in
+
C
Zoom in
+
D
Zoom in
+
E
Zoom in
+
F
Zoom in
+
A - Pastel Stone
B - Pastel Mussel
C - Pastel Denim
D - Pastel Fjord
E - Pastel Onyx Grey
F - Pastel Graphite
Woodgrain finishes - Woodland
A
Zoom in
+
B
Zoom in
+
C
Zoom in
+
D
Zoom in
+
E
Zoom in
+
F
Zoom in
+
G
Zoom in
+
H
Zoom in
+
I
Zoom in
+
J
Zoom in
+
K
Zoom in
+
L
Zoom in
+
A - Cascina Pine
B - White Avola
C - Light Lakeland Acacia
D - Natural Canadian Maple
E - Natural Nebraska
F - Truffle Brown Davos Oak
G - Shorewood
H - Green Grey Avola
I - Grey Nebraska
J - Lancaster Oak
K - Tobacco Aida Walnut
L - Graphitewood
OTHER FINISHES
A wide range of colours is available on request.
Accessories
PAPER GUIDE

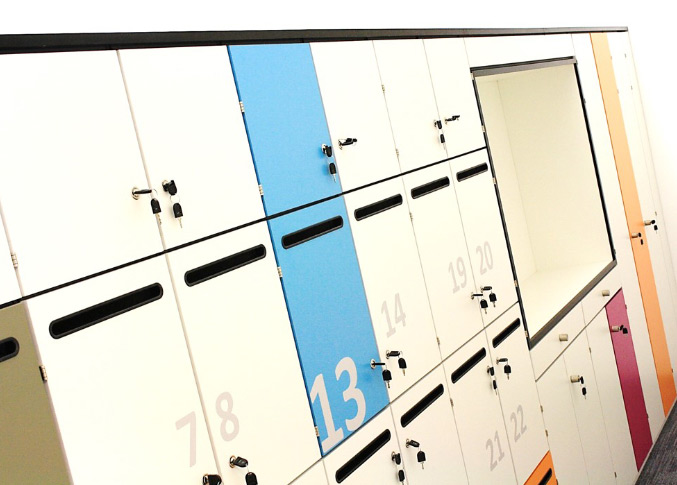

Sometimes lockers are used in a manner that requires a post slot. Our paper guides are fitted to the doors at the manufacturing stage allowing no loss of time on the day of installation. Size of opening approx. 310 x 21mm.
LABEL FRAME
Our label frames come in three different sizes. These are:
- Small – 69 x 35mm
- Medium – 93 x 42
- Large 100 x 74mm
Other types are available on request.
NUMBER DISC
Very useful when you have large quantities of lockers. Two options available:
- Option 1: A vinyl disc supplied in brushed stainless effect with black text. This is a cost effective option.
- Option 2: Laser engraved (similar to the image shown). This is a better quality disc with a thickness to the material and more Colour options available.
