EducationWall

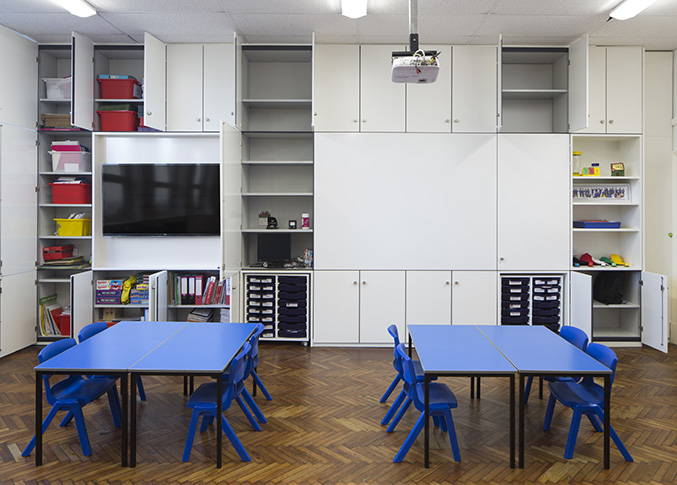

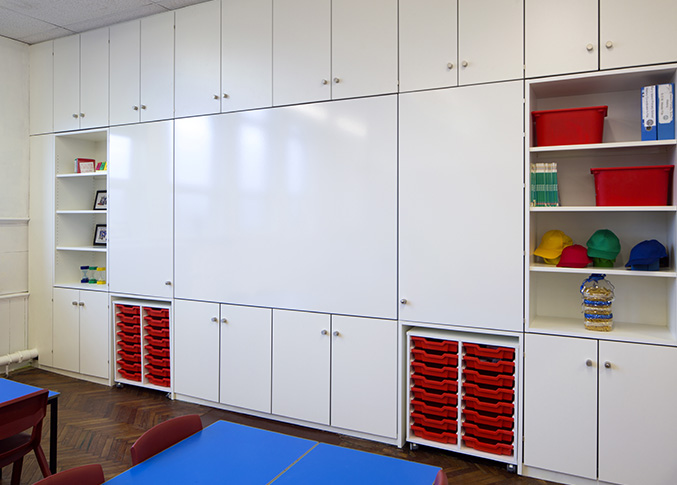

EducationWall is a run of modular storage units to house all the key elements for the modern classroom. Items such as smart/interactive screens, Gratnell trays, charging points for tablets/laptops and lockers, to name a few. All of the key items can be incorporated to make one complete attractive, user friendly, multi-purpose storage system.
The key benefits to an EducationWall include:
- Maximising valuable classroom space
- Improved performance, giving pupils added enthusiasm in the classroom
- An inspirational focal point in a prime location providing space for displaying work and key learning points
- Cost saving – by taking all current individual products and merging them into one run
- Wow factor – a unique looking, tidy solution which fits in with current trends and the demands of a busy class.
Specifications
Whilst the main centre section of the run would commonly house the interactive board, the remainder of the run can be tailored to the customers needs. Some classrooms may benefit from locker solutions whilst others may need storage/shelving/filing etc. The options are there to ensure all environments are catered for. The choice is yours…..
- STYLE ONE (EW1) – Full height doors
- STYLE TWO (EW2) – Doors with top box over full height doors
- STYLE THREE (EW3) – Doors with fascia over
- STYLE FOUR (EW4) – Double doors with top box over
- STYLE SIX (EW6) – Clad alcove with doors above and below
- STYLE SEVEN (EW7) – Drawers with doors over
- STYLE EIGHT (EW8) – Glazed alcove with drawers below and doors over
- STYLE NINE(EW9) – Full height doors with fascia and plinth
- STYLE TWELVE (EW12) – Low level storage unit
- STYLE SEVENTEEN (EW17) – Locker units
- STYLE TWENTY (EW20) – Sliding doors
- Available sizes :
Width (double door modules) : 1200mm, 1000mm, 800mm
Width (single door modules) : 600mm, 500mm, 400mm
Depth : 600mm, 472mm (Foolscap), 412mm - Floor to ceiling construction. A maximum ceiling height of 2900mm can be achieved with a one piece board. Higher heights can be achieved with added top fascias or additional top box storage.
- Aluminium constructed sidewalls to achieve a high level of strength to weight construction. The Ali is punched with a 25mm grid to give added flexibility with the internal fitments compared to the conventional 32mm pegboard. The Aluminium extrusion is made solely for James Tobias Ltd.
- All carcass/exterior timber panels are made from 18mm MFC.
- 22mm MDF support rails are added to the base/top panels for added strength.
- The weight loading per module can be up to 240 kg evenly distributed between the internals.
- +/- 15mm tolerance per module, ensuring the units are levelled to suit the site conditions.
- Up to 45 dB Rw Acoustic performance (BS 5821).
View Internals
Scroll right to view range →
1
3 x Roll out filing frames. 1 x Combination shelf with pigeon holes above. 3 x Adjustable plain steel shelves.
2
3 x Drawer fronted deep drawers. Clad alcove with glass shelves and downlighters.
3
8 x Combination shelves for lateral filing pockets. 1 x Roll out reference shelf.
4
6 x Adjustable plain steel shelves.
5
2 x Adjustable plain steel shelves. 1 x Combination shelf. 2 x Front to back coat rails.
6
Chiller (example only) and low level double doors with double clad alcove for media screen above.
7
Chiller (example only) and low level double doors with double clad alcove for media screen above.
8
Double door module with top box.
9
Personal lockers, individually locking compartments for personal storage.
10
600 Deep cloaks unit. 3 x Adjustable plain steel shelves. 1 x Lateral coat rail.
11
1 x Roll out filing frame (shown with dividers). 2 x Shallow drawers. 1 x Combination shelf with mini pigeon hole above. 1 x Lateral cradle. 1 x Slotted shelf with dividers.
12
3 x Deep drawers. 1 x Roll out reference shelf. 1 x Slotted combination shelf. 1 x Slotted shelf. 2 x Adjustable plain steel shelves.
Choose from our multipurpose internal range shown above.
All internals are designed and manufactured in house in our Somerset factory and delivered using our fleet of modern vehicles. They are then carefully installed by our own directly employed and experienced fitting crew.
Helping choose your internals
James Tobias StorageWall is a well-engineered and robust storage system designed to accommodate normal office filing requirements. The method of storage provided by the various internal fitments is self-evident but the following precautions should be heeded.
Shelves – All shelves are manufactured from steel. Their design provides lateral restraint to the unit side walls and eliminates the sagging associated with timber shelves.
Only fit the appropriate number of files to the shelves or filing frames – forcing in extra files exerts lateral loads on the side walls. Overloading the shelves and filing frames in this manner is dangerous. The use of shelf dividers is recommended to reduce the possibility of lateral loading on the sidewalls.
To avoid damage to the doors, hinges and lock mechanism ensure that badly filed or bulky items do not interfere with the doors or locking mechanism when closing.
Roll Out Filing Frames
Roll Out filing frames should not be located more than 1300mm from the floor (a maximum of 4 levels) to ensure safe operation.
To avoid damage to the doors, doors must be opened beyond ninety degrees before pulling out internal roll-out fitments.
View Finishes
Explore our available finishes:
Element colour range
A - Element Platinum White
B - Element Crema
C - Element Light Grey
D - Element Black
Elite colour range
A - Elite White Gloss
B - Elite Crema Gloss
C - Elite Stone Gloss
D - Elite Black Gloss
E - Elite Tobacco Halifax Oak
F - Elite White Halifax Oak
G - Elite Natural Halifax Oak
H - Elite Boston Concrete
Pastel colour range
A - Pastel Stone
B - Pastel Mussel
C - Pastel Denim
D - Pastel Fjord
E - Pastel Onyx Grey
F - Pastel Graphite
Woodgrain finishes - Woodland
A - Cascina Pine
B - White Avola
C - Light Lakeland Acacia
D - Natural Canadian Maple
E - Natural Nebraska
F - Truffle Brown Davos Oak
G - Shorewood
H - Green Grey Avola
I - Grey Nebraska
J - Lancaster Oak
K - Tobacco Aida Walnut
L - Graphitewood
OTHER FINISHES
A wide range of colours is available on request.
Additional options
Interactive White Board
Schools and teachers worldwide use SMART Interactive Whiteboards (IWB) to transform the teaching and learning environment. You can rely on James Tobias Ltd to help you create a technology-enabled teaching and learning environment and deliver the best return on investment. We offer the full package with SMART – from installation of the electrics and SMART Board, to the after care and training. By engaging with James Tobias Ltd + SMART, we believe that our total package solution will not only prove best value for money, but create extraordinary moments that improve student outcomes.
We can also help with other technical solutions for the classroom:
Charging Station
- TYPE 1 – CLAD ALCOVE – The clad alcove will typically fit mid height of the run. The main façade would then be split above/below the alcove.
- TYPE 2 – STAND ALONE UNIT – Separate to the teacher wall, we can build a mobile unit to house all necessary charging equipment.
- TYPE 3 – INTERNAL DRAWER – Concealed back behind the front façade/doors, it gives peace of mind that no expensive equipment is on show when locked away.
JTpowerPad15 – a 15-port professional universal charger
Do you find that you use a large number of electronic devices that need to be kept charged or charged and synchronized via USB cable? If so the JTpowerPad15 is about to change your working life for the better…
Many schools/colleges need to charge and synchronize multiple devices for the classroom. JTpowerPad15 will provide you with state-of-the-art USB technology that is compatible with every manufacturer model. The JTPowerPad15 is one device to sync all others.
- Functionality: Charge & Sync
- Number of Ports: 15 Ports
- Power Supply: FSP-180-AHAN1
- Compatible Devices: Universal and Future Proof**
- Charge per Port: 2.1A
- Control Interface: Terminal command interface
- Charging Method: Intelligent charging protocol
- Delivered as: Cased unit
Gratnell Trays
A well known industry standard that can be housed within an alcove for rapid use. Again, alternatively, this can be housed to sit behind the main façade.

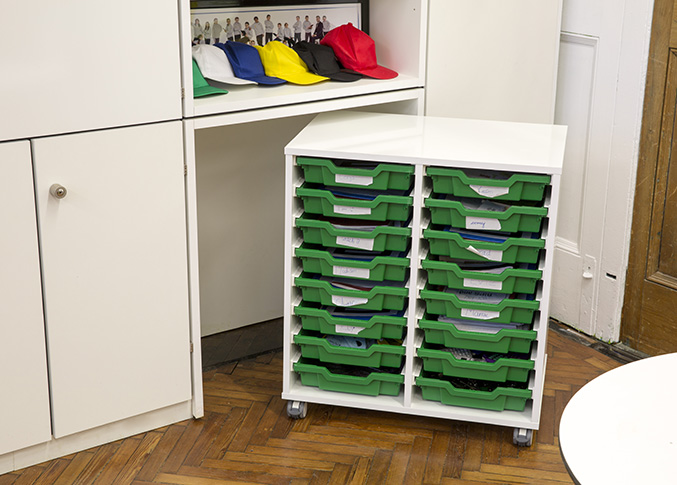

As an alternative to fixed shelving, we can also offer pedestals for Gratnell Trays that can be constructed in either MFC or powder coated steel. These mobile ped units can be stored away in a clad alcove/garage type area, built within the main teacher wall run.
Advantages are:
- Extensive range of finishes, as offered in our standard range, which are modern and current. Using a writable gloss surface adds another dimension to the usage.
- Can be designed to house seven levels of shallow trays where current peds only allow 6 levels.
Desking
Alongside EducationWall, James Tobias have designed and developed a range of colourful benching for educational catering markets, and office breakout areas. The bench and tables can be a design feature that fit into a multitude of environments. It is a simple but effective way of creating seating that is high practical but sleek and modern.
The extensive range of finishes that are available on all James Tobias products ensures that we have an option for most tastes.
- Range of sizes from 1200mm – 2600mm long.
- Manufactured from 38mm MFC. Edged/sealed all round.
